X30-GCC-7 SEAT MINI BUS

Commercial Commercial Commercial

Description
Overview
Features

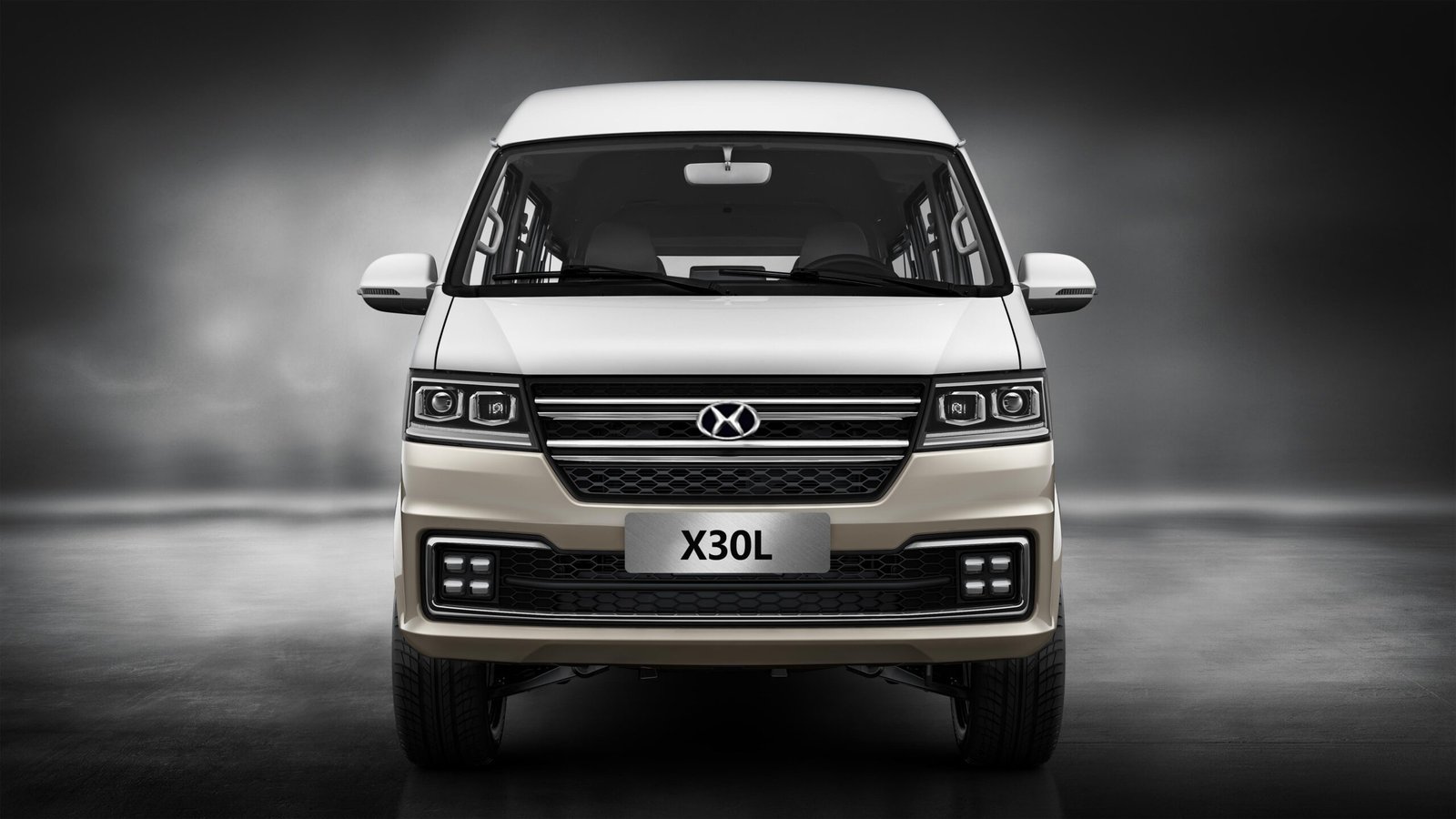

Exterior

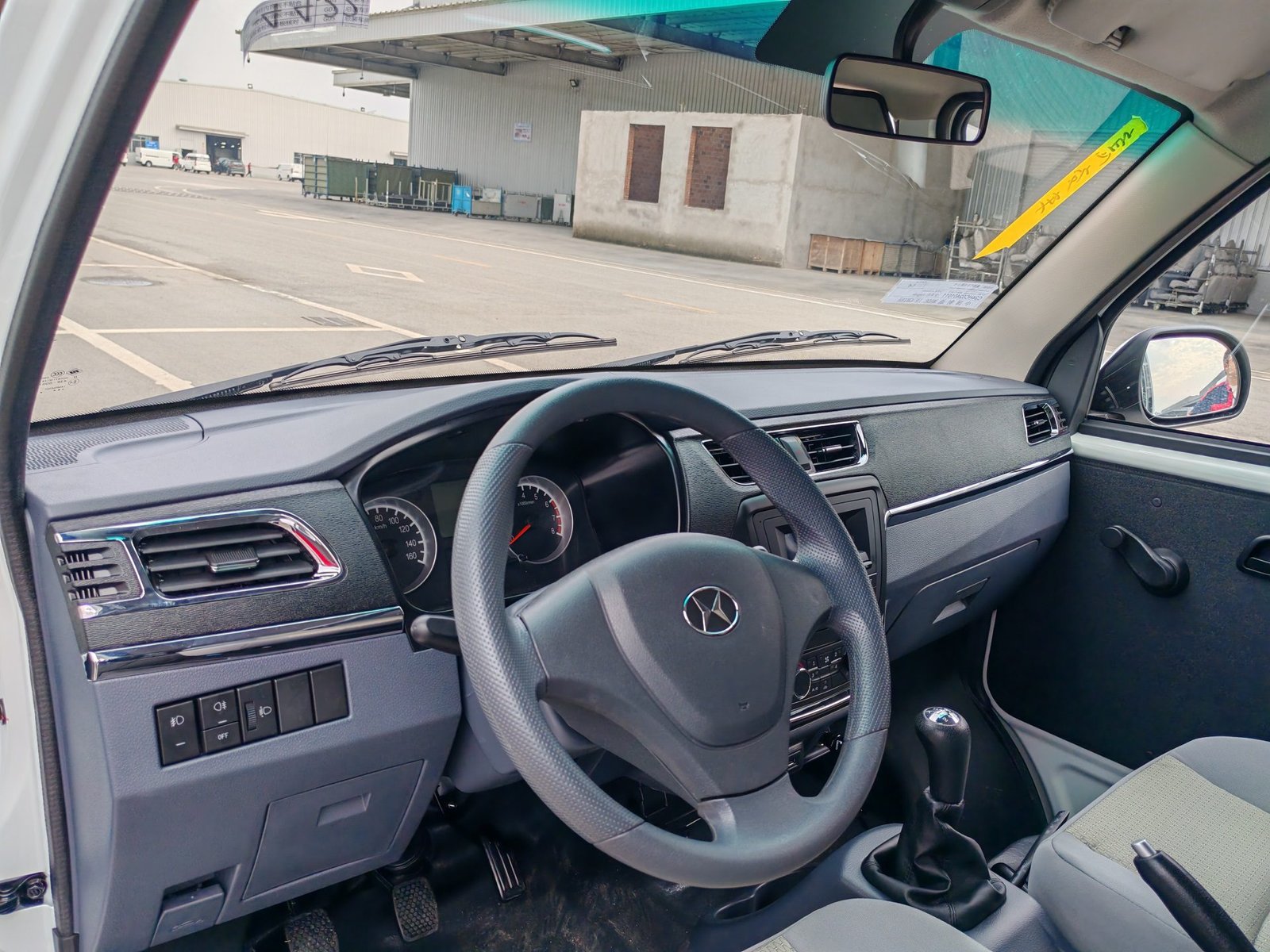

Interior
Videos
Specifications

Car Overview

Type:

Commercial

Color:

Gold

Features

G01

ESC

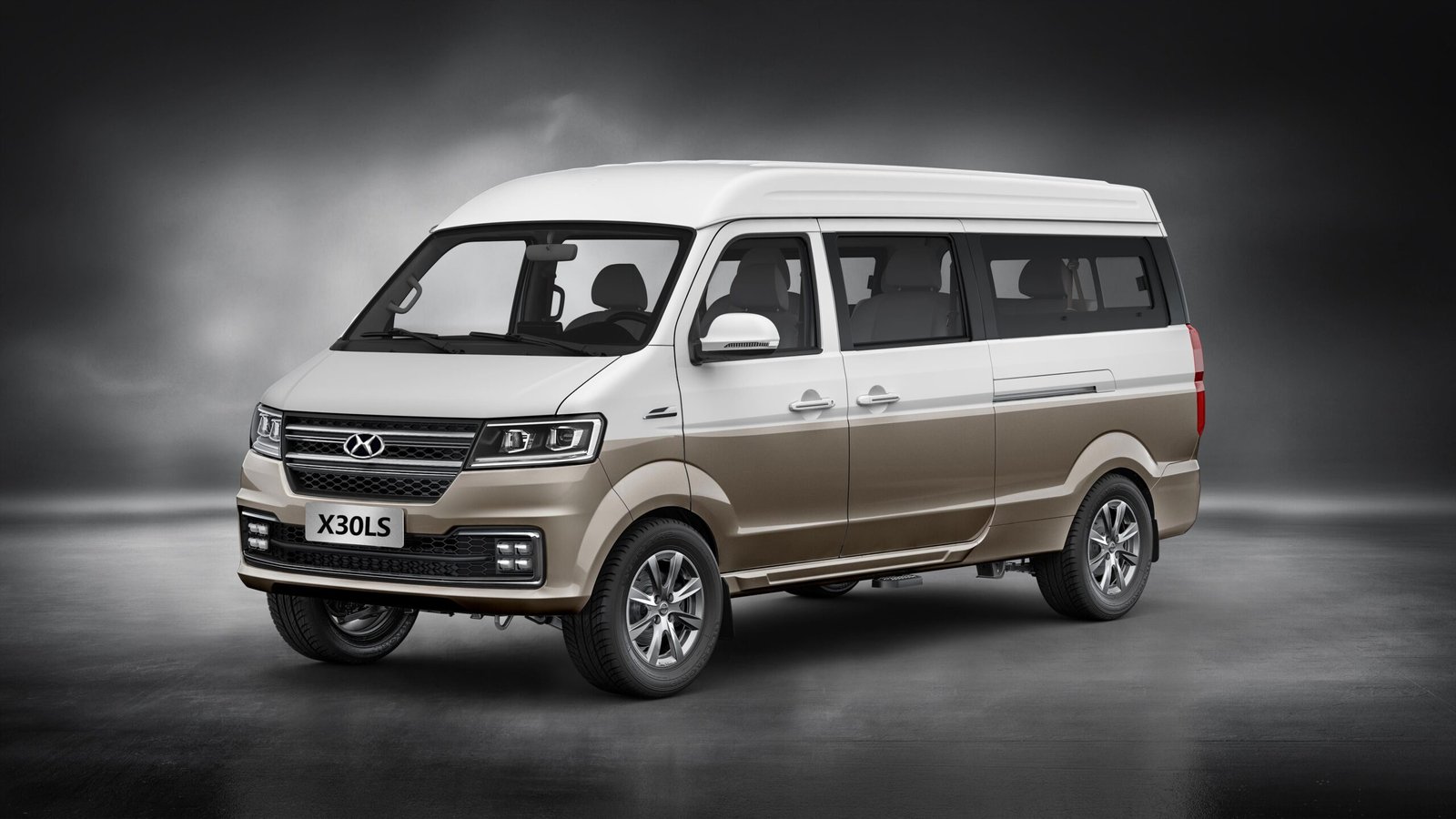

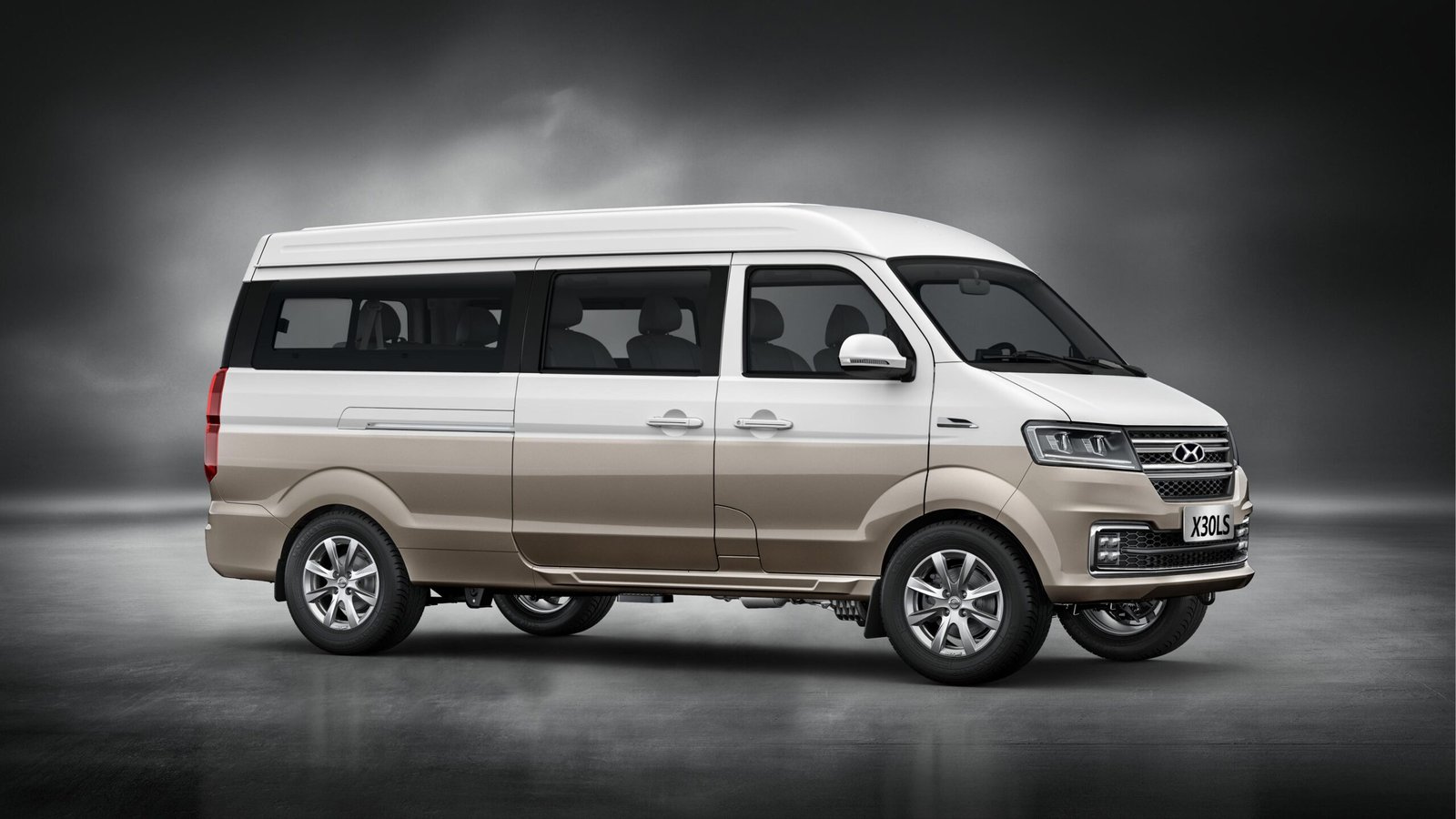

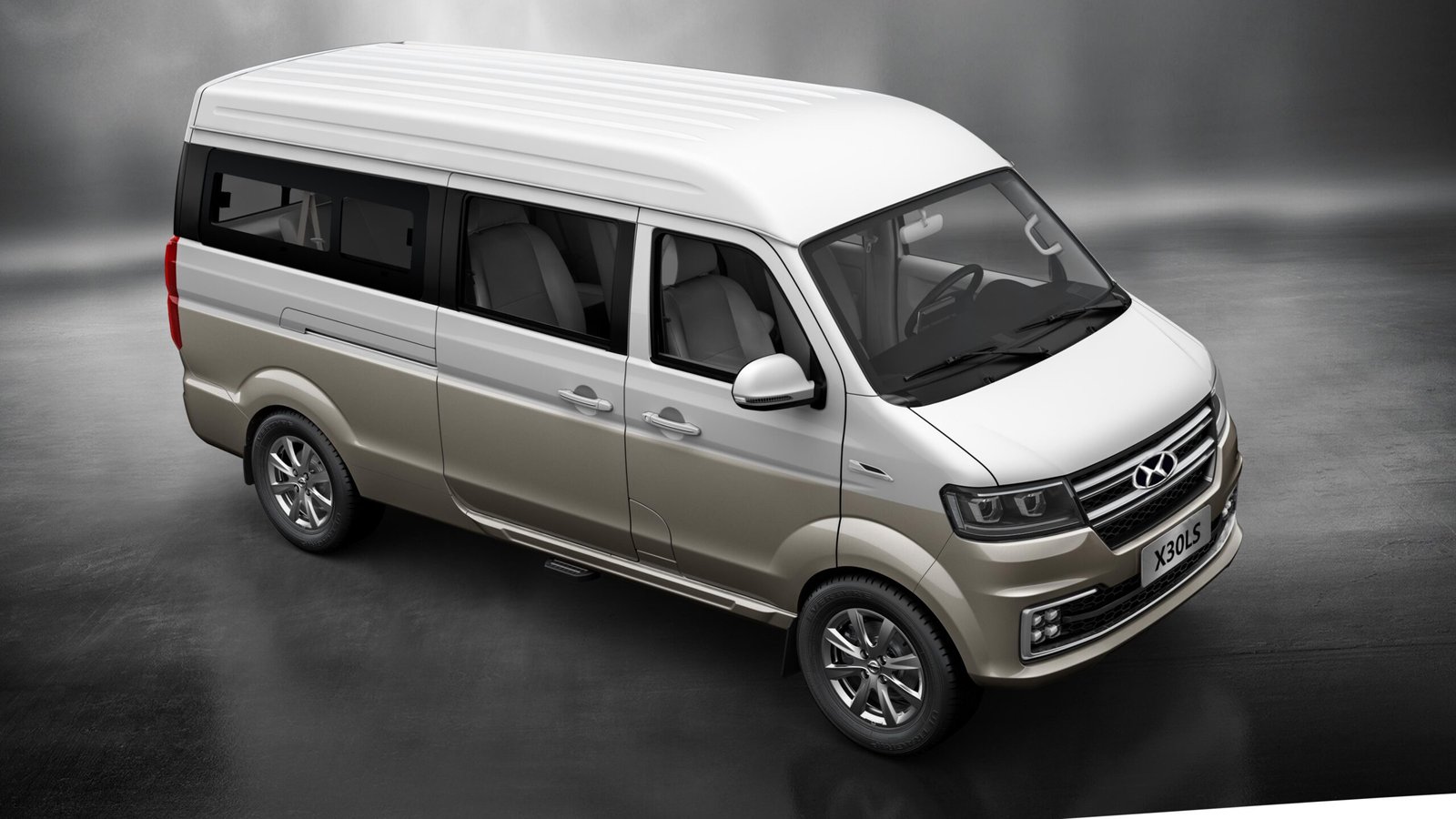

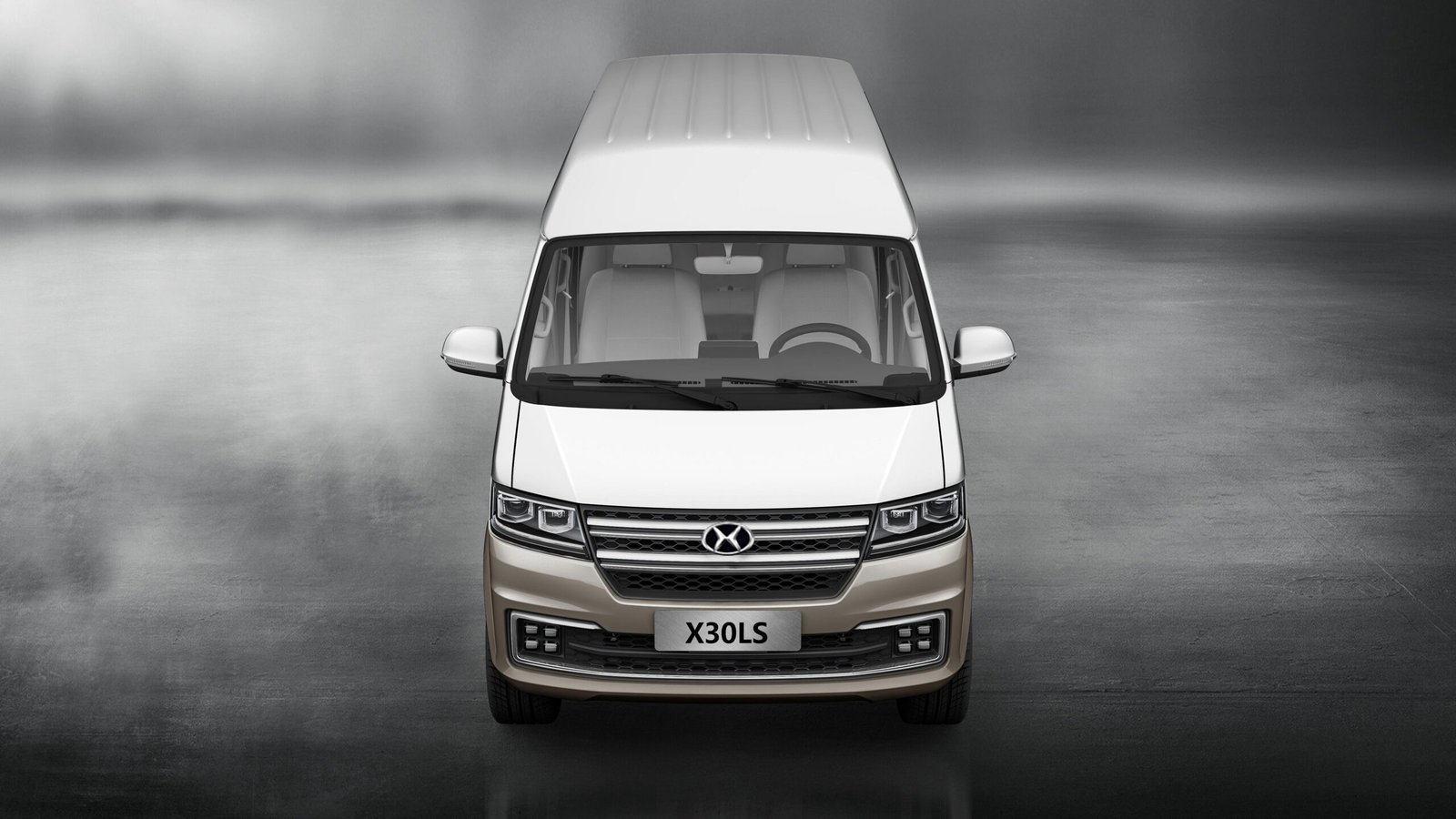

X30 LS 9-Seater Deluxe

1499 Ml Displacement

80/75 KW Power

40/45 L Fuel Capacity

LHD RHD Drive

4495×1680×1995 MM Dimension

2945 Wheelbase

1300/2160 Kg weight

195/65R15 Tyre

Daytime Running Light

Radio

Power Window

Reverse Sensor

DLCG14 1.5 L Engine EU V EU VI Emission standard

Display Audio

RKE

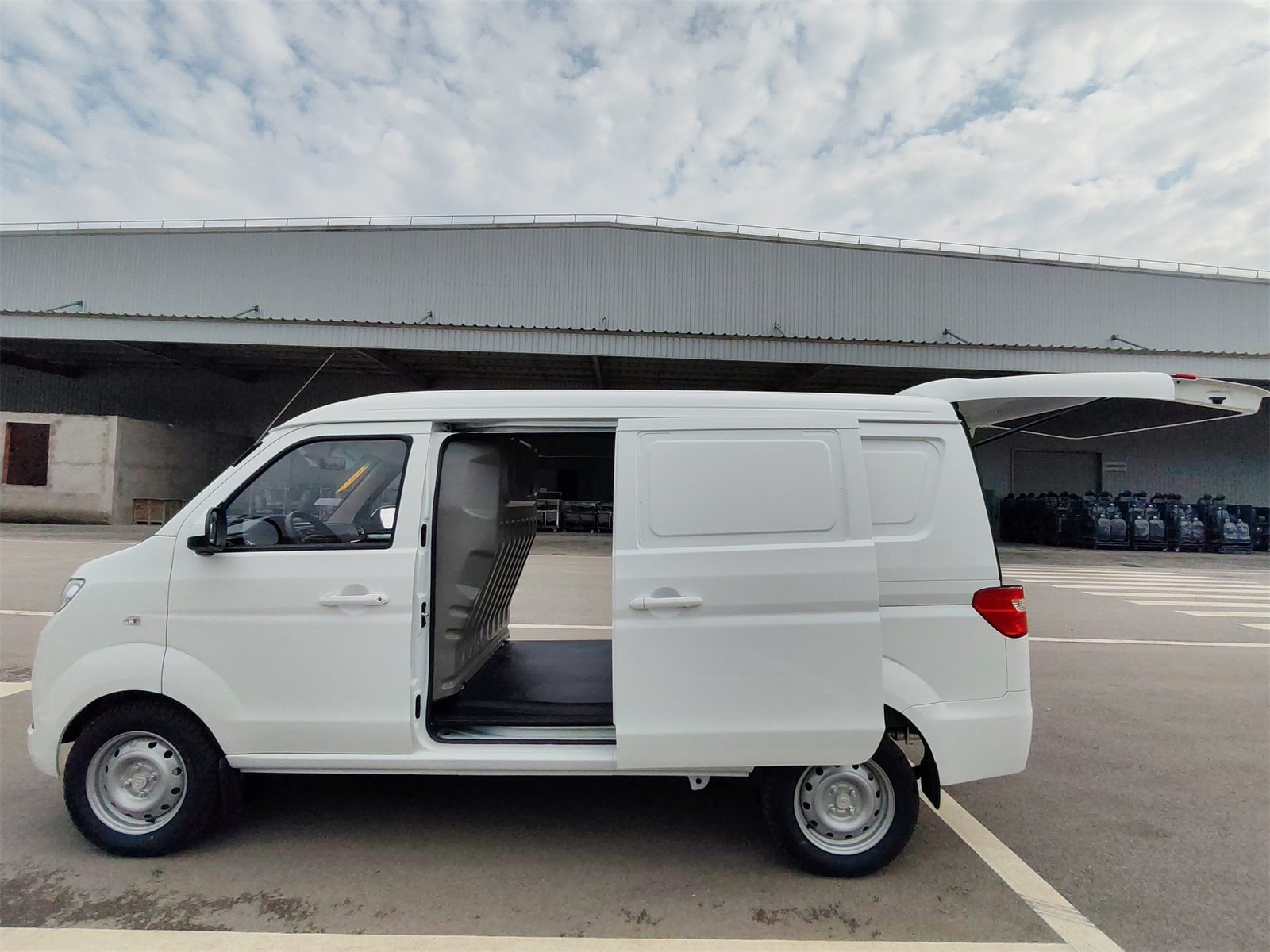

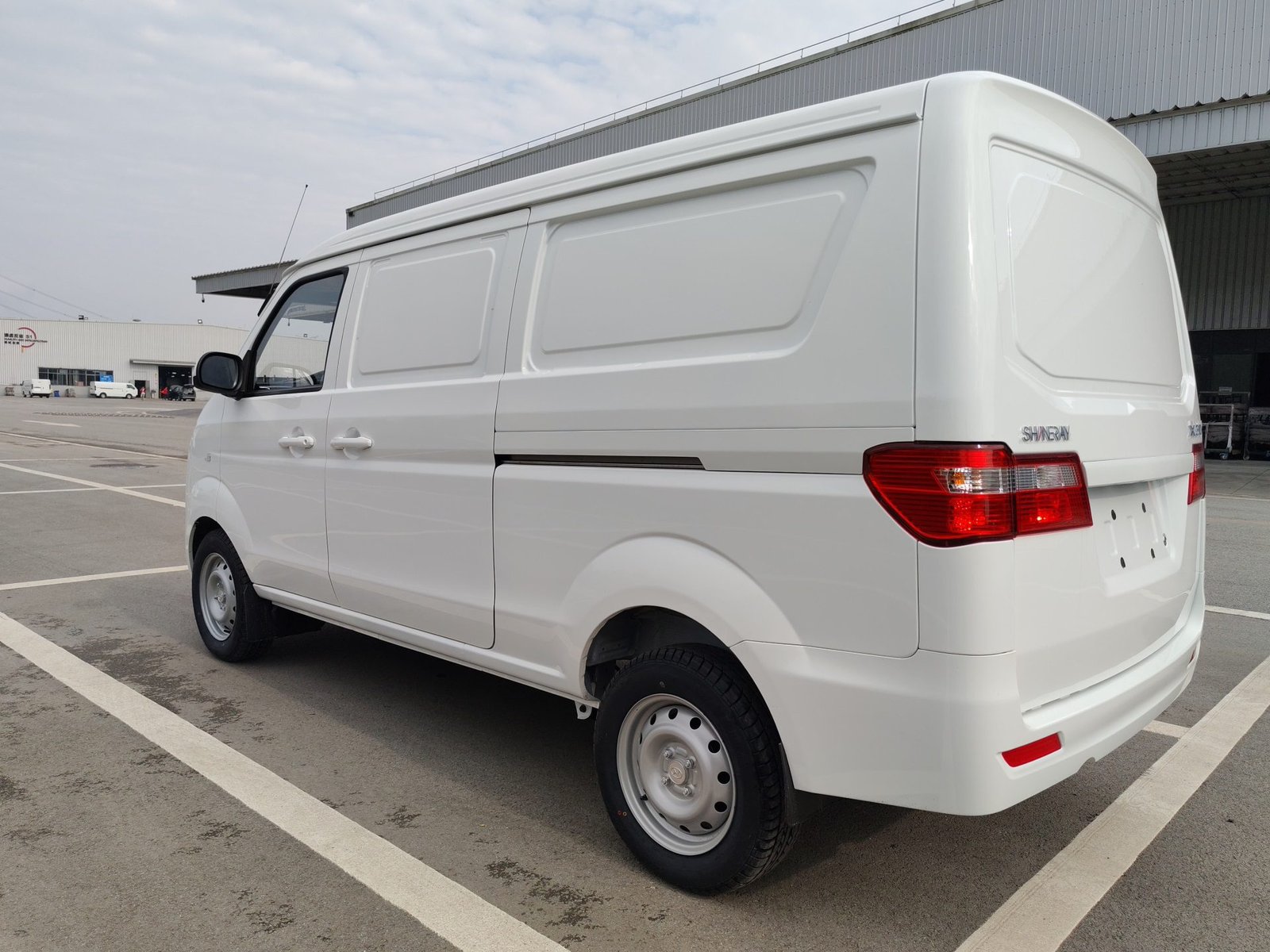

X30 LS 2-Seater Cargo Van

M1 Type

2 Seater

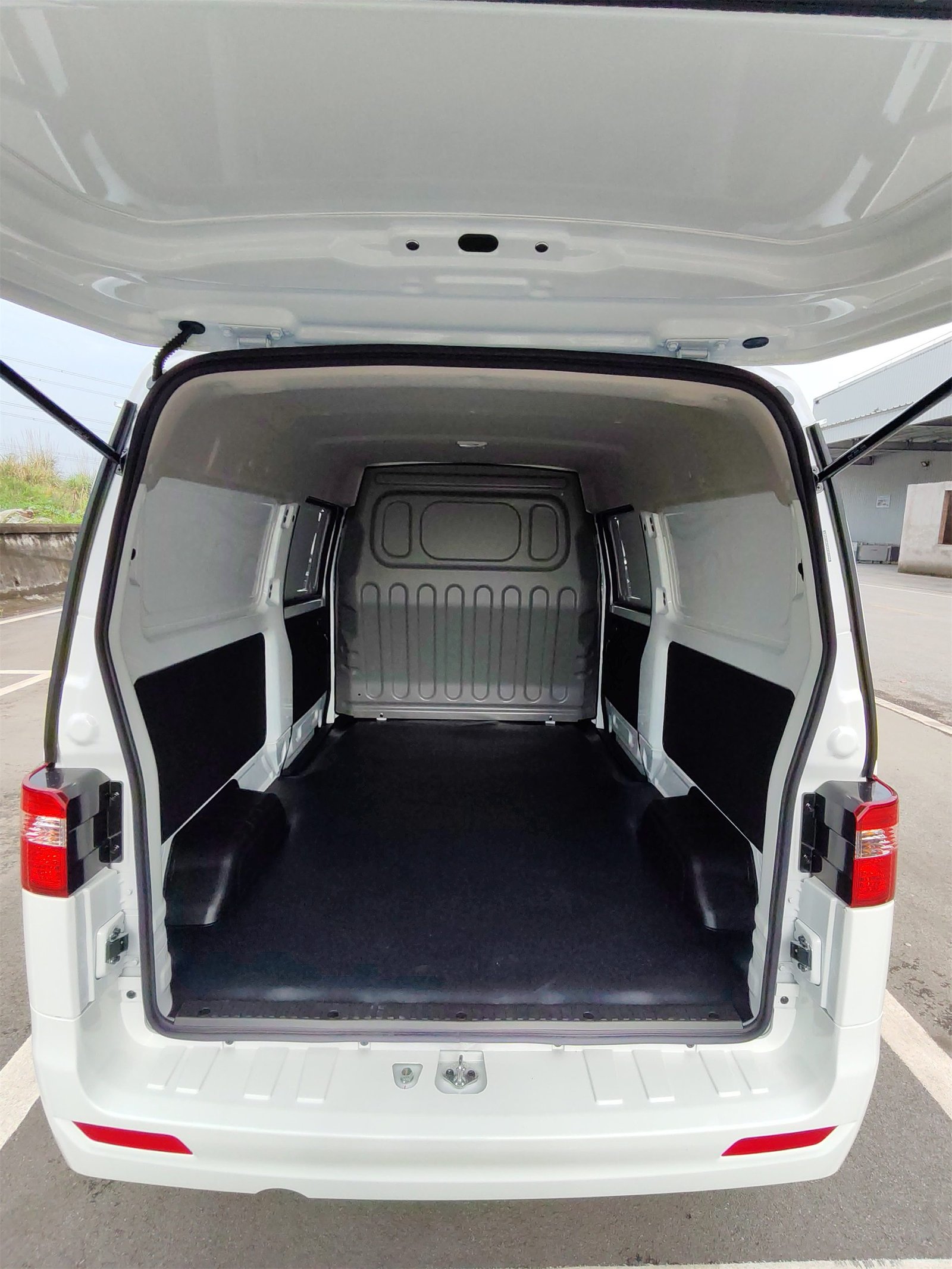

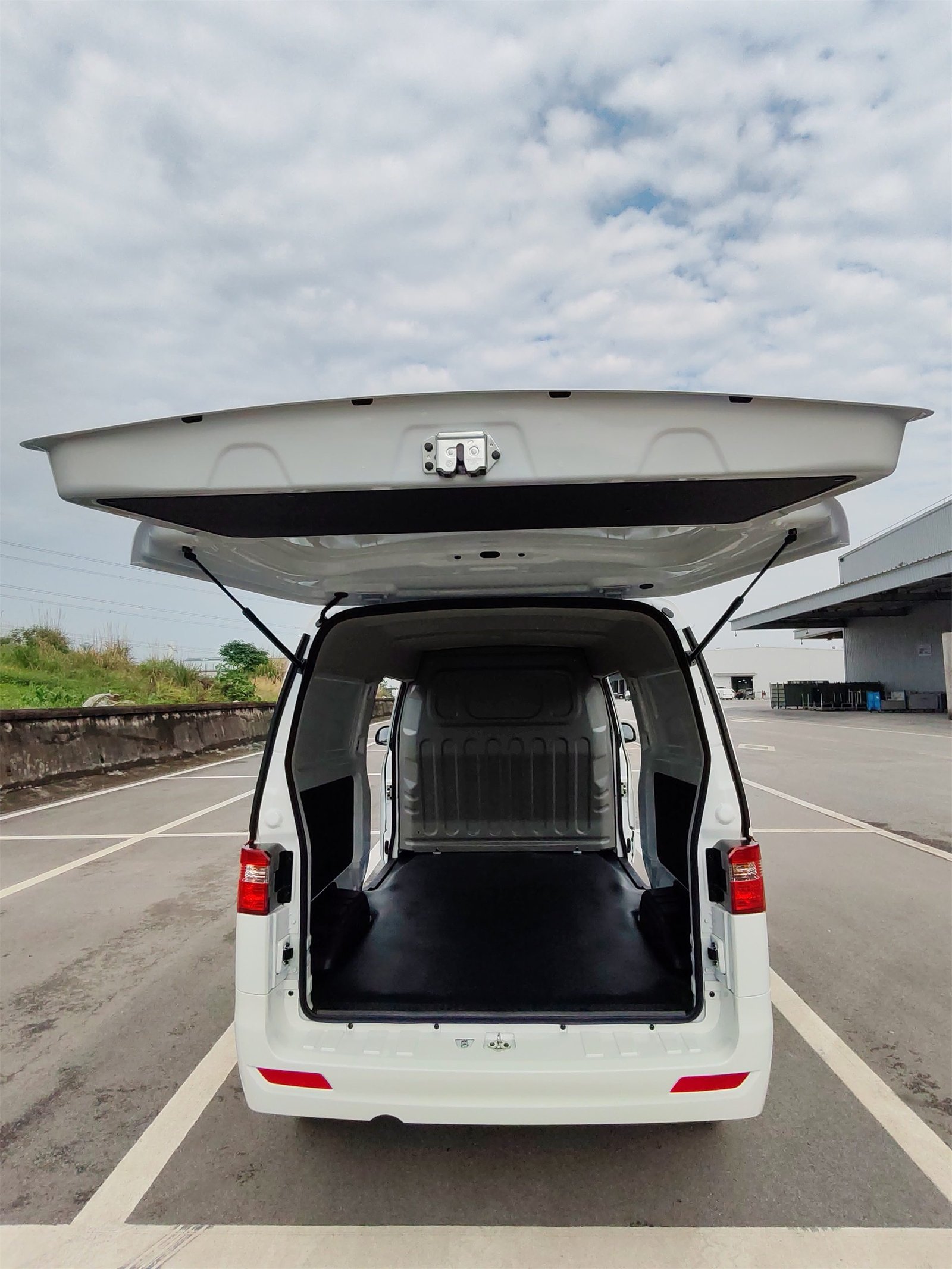

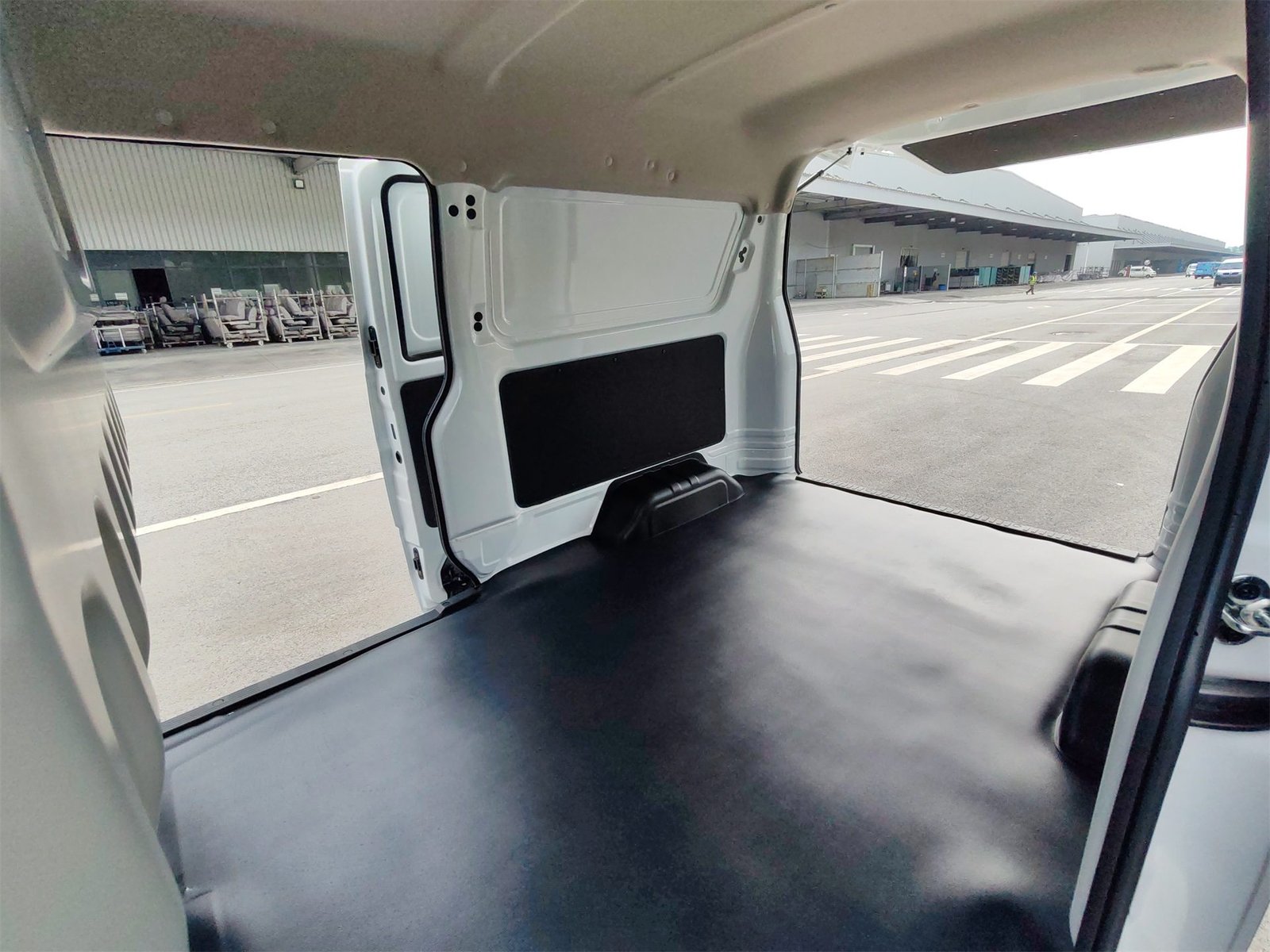

Cargo Dimension

Macpherson Front Suspension

Leaf Spring Rear Suspension

Front Discs and Rear Drum Brake

Steel Hub Material

ABS

Front Dual Airbags

Leather Seat

A/C

Location

Loan Calculator

Review (0 Review)

Overall Ratings

0.0

Out Of 5

Comfort

rating 0.0

0.0

Interior Design

rating 0.0

0.0

Performance

rating 0.0

0.0

Speed

rating 0.0

0.0

Leave a review

You need to login in order to post a review.

PDF Brochure

Car Overview

Type:

Commercial

Color:

Gold

Showroom Address

		X30-GCC-7 SEAT MINI BUS
	SPEC.	COMFORT
SYS.	Parameter Category	MINI BUS（M1）-7
General Spec.	Announcement Model	JKC6420A6X0
Driving direction	LHD
Emission standard	EURO V
Length mm	4200
Width mm	1680
Height mm	1930
Wheelbase	2700
Wheelbase front/rear mm	1425/1435
Overhang length front/rear mm	660/840
Inside width of cargo box mm	╳
Interior width mm	╳
Interior height of cargo box mm	╳
Overall mass kg	1210
Rated mass kg	–
Maximum gross mass kg	1785（750/1035）
Number of seats	7
Tire specification	175/70R14
Spare tire specification	175/70R14
Number of closed doors and windows	╳
Maximum speed km/h	≤120
Power train	Engine	SWJ15
Displacement ml	1490
Fuel tank	45L
Rated power KW	81
Maximum net power KW	76
Chassis	Tank volume L	╳
Front suspension type	MacPherson
Rear suspension type	Steel plate spring
Number of leaf springs	-/5
Wheel material	Steel wheels + wheel covers
Front Brake Type	Disc
Rear Brake Type	Drum
ESC	Yes
BOS brake priority	Yes
Electric Power Steering (EPS)	Yes
Electronic sys.	Instrument Panel	Korean version
Radio	╳
Floating Players	╳
DAB+	Yes
Center 10.25-inch floating screen	Yes
Reversing radar	Yes
Reversing camera	Yes
Battery	Yes
Front door center console	Yes
Center Door Control	Yes
Tailgate Control	Yes
Key	2 Remot control key
Single Steam Air Conditioning	╳
Dual Steam Air Conditioning	Yes
Heater	Yes
Cigarette lighter/12V power supply	Yes
Rear reading light	Yes
Front headlight	X30L-18 version
Rear fog lamp	Yes
Daytime Running Lights	Yes
Current Tail Lights	Yes
Anti-theft control system	Yes
Tire pressure monitoring (direct)	Yes
Rear window defogger	Yes
Body parts	Front/Rear Bumper	X30L-18 version
Engine grille	Logo: red SRM
Front Door Power Glass Lifter	Yes
Exterior Mirrors	Yes
Front wiper	Yes
Center divider	╳
Dual airbags	Yes
Front driver’s seat	Comfort with Headrest
Front passenger seat	Comfort with Headrest
Second Row Seats	2
Third Row Seats	3
Four-row seat	╳
Main driver’s sun visor	Yes
Passenger sun visor	Yes
Front Seat Belt	3-Point Harness with Retractor
Second row seat belts	Yes
Third-row seat belts	Yes
Driver Seat Belt Reminder	Yes
Accompanying Materials	Warning Triangle Plate/ Accompanying Tools/ Fire Extinguisher/ First Aid Kit/ English/Arabic User’s Manual
	Special Requirement 11	Extreme Heat Environment Adaptation applied
